CLB CLOUD

CLBcloud cell level battery management is a digital twin of battery management system which provides SOX features from wide variety of data passed thru the cloud

overviews of clbcloud

CLB live status

This shows a live graph of our test system running

UCSD project

Element Energy Pangyo

Data flow

To run a model all data has to run fluently and also this data should be feedback to the system for better SOX measures

Data in

CLB battery

OTA update

MQTT server as a datalake
Database

Data Lake

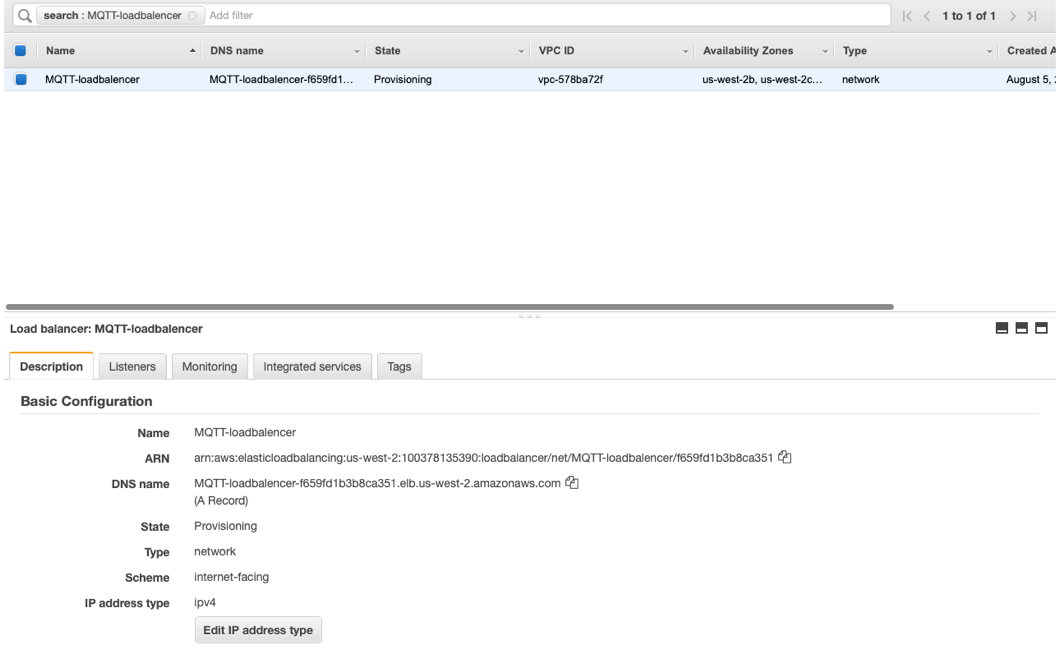

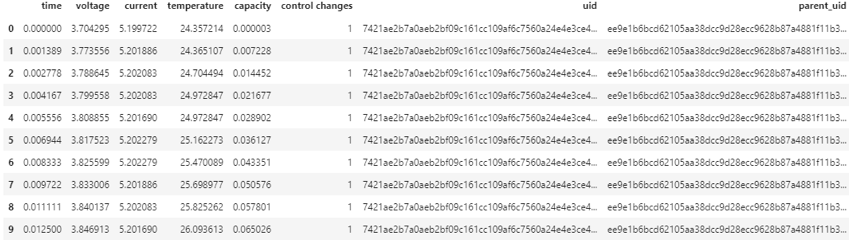

For the data lake we use a very efficient MQTT server to gather all the raw data

Parser

Raw data has to be parsed and tagged to be stored in a database. In the parser also data compression is working to drive lower resource of the system

Data Base

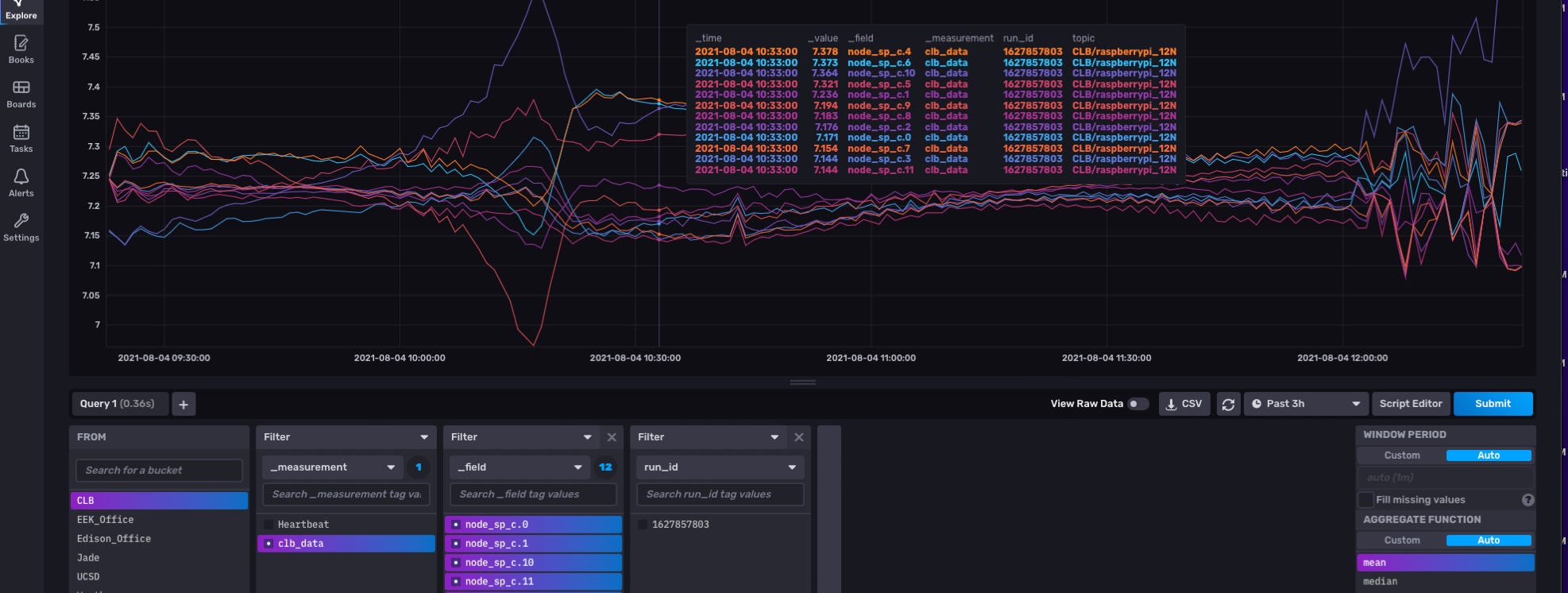

We use InfluxDB for raw data storage, which is a time series database. Also MYSQL and other cloud base databases are used for several functions.

SOX

Machine learned Result

Or human interactive graphs and figures are calculated from the data. Since all CLB can gather bigdata vertically and horizontally ML will give insights like accurate SOC, SOH, SOD.....

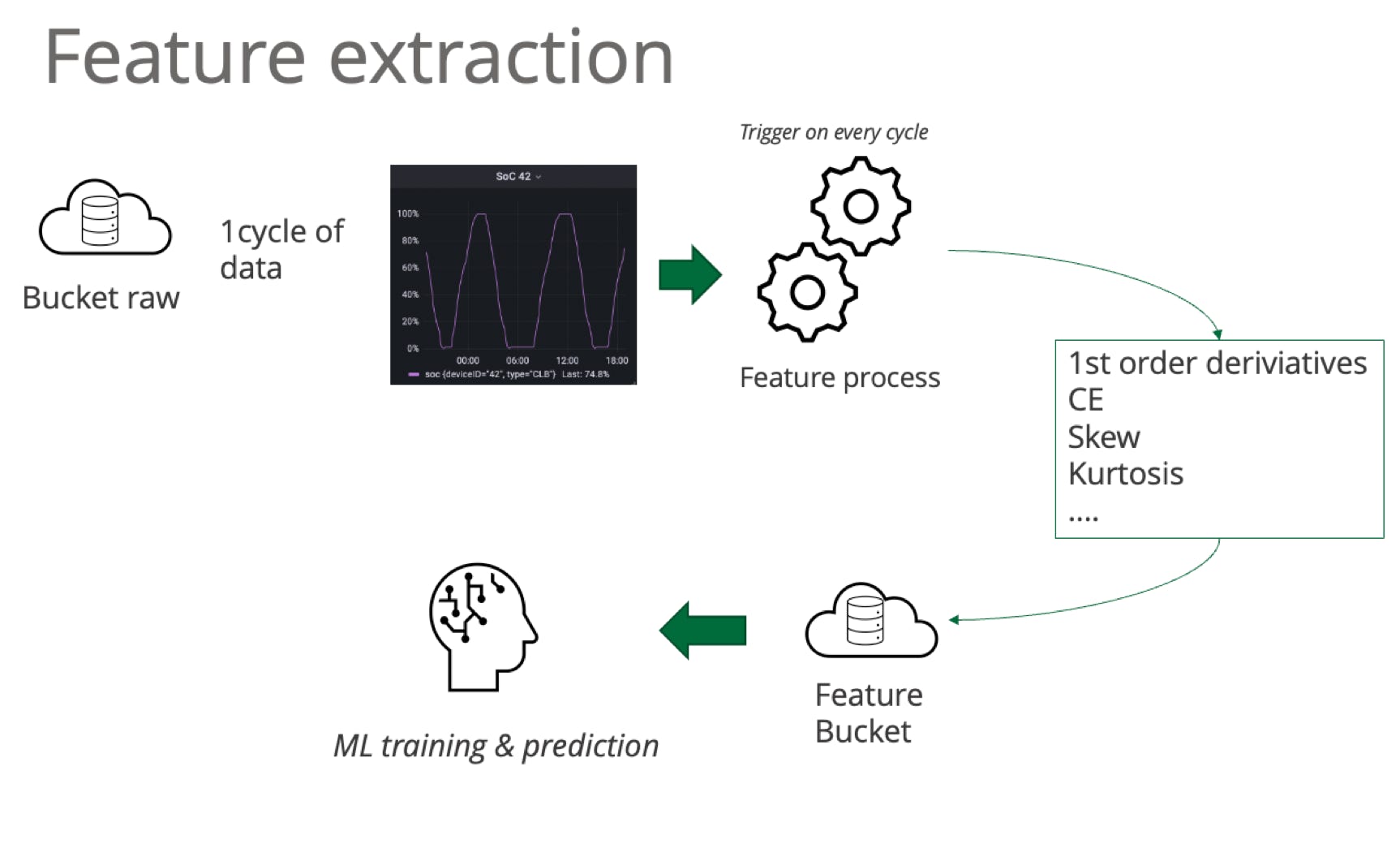

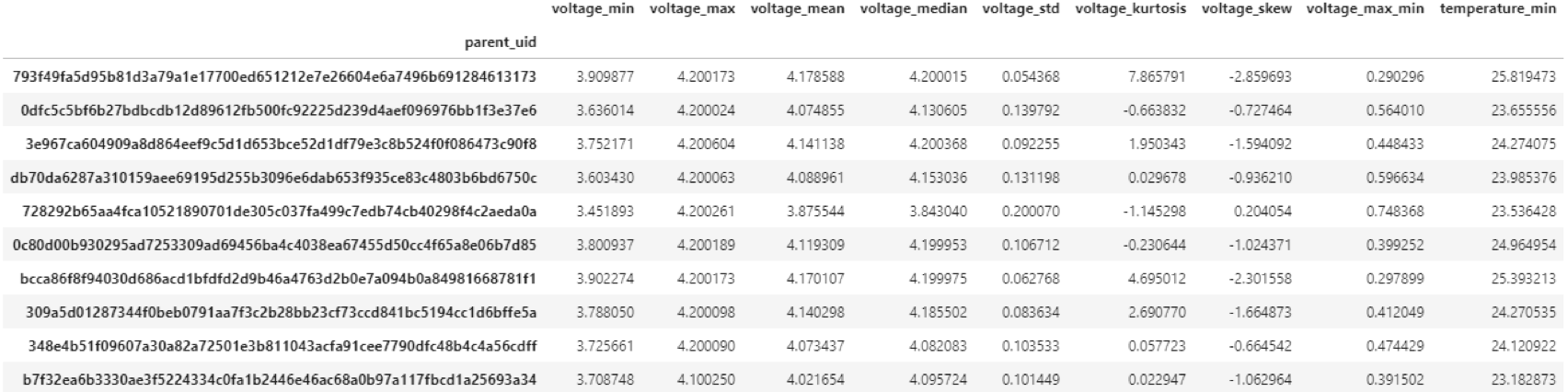

Feature Extraction

Work On going

Our best works

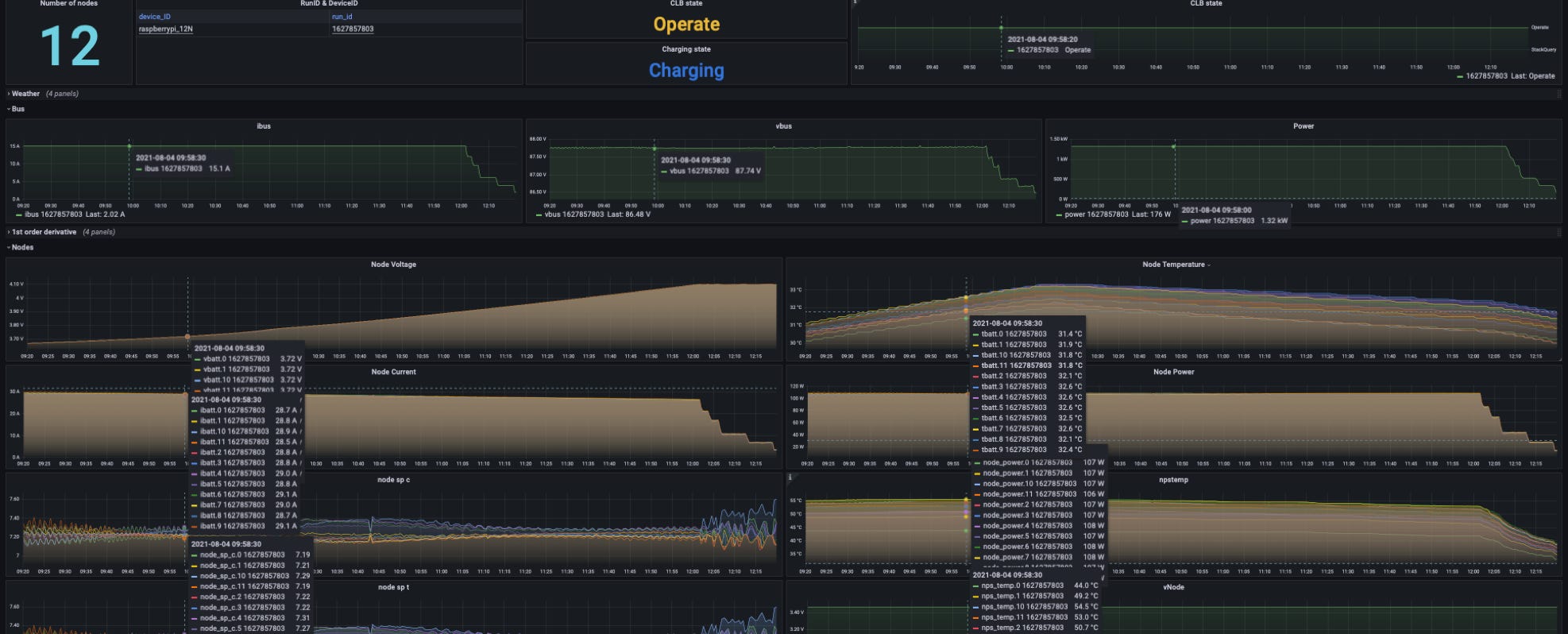

grafana

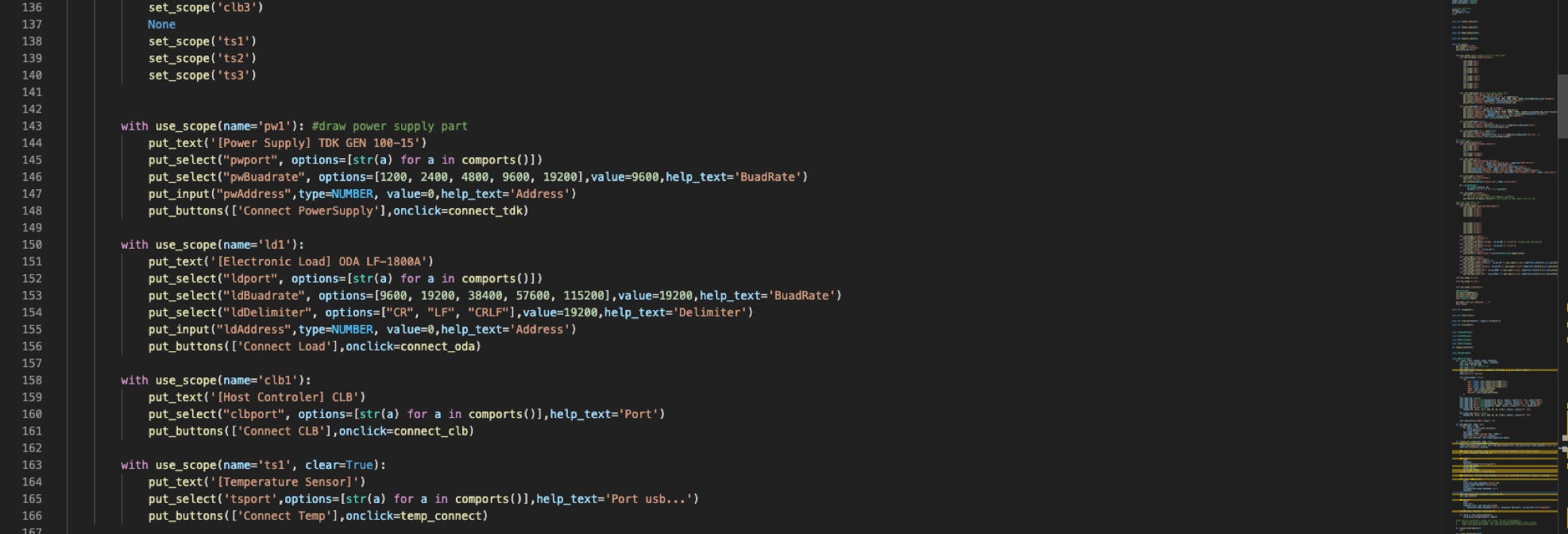

python coding

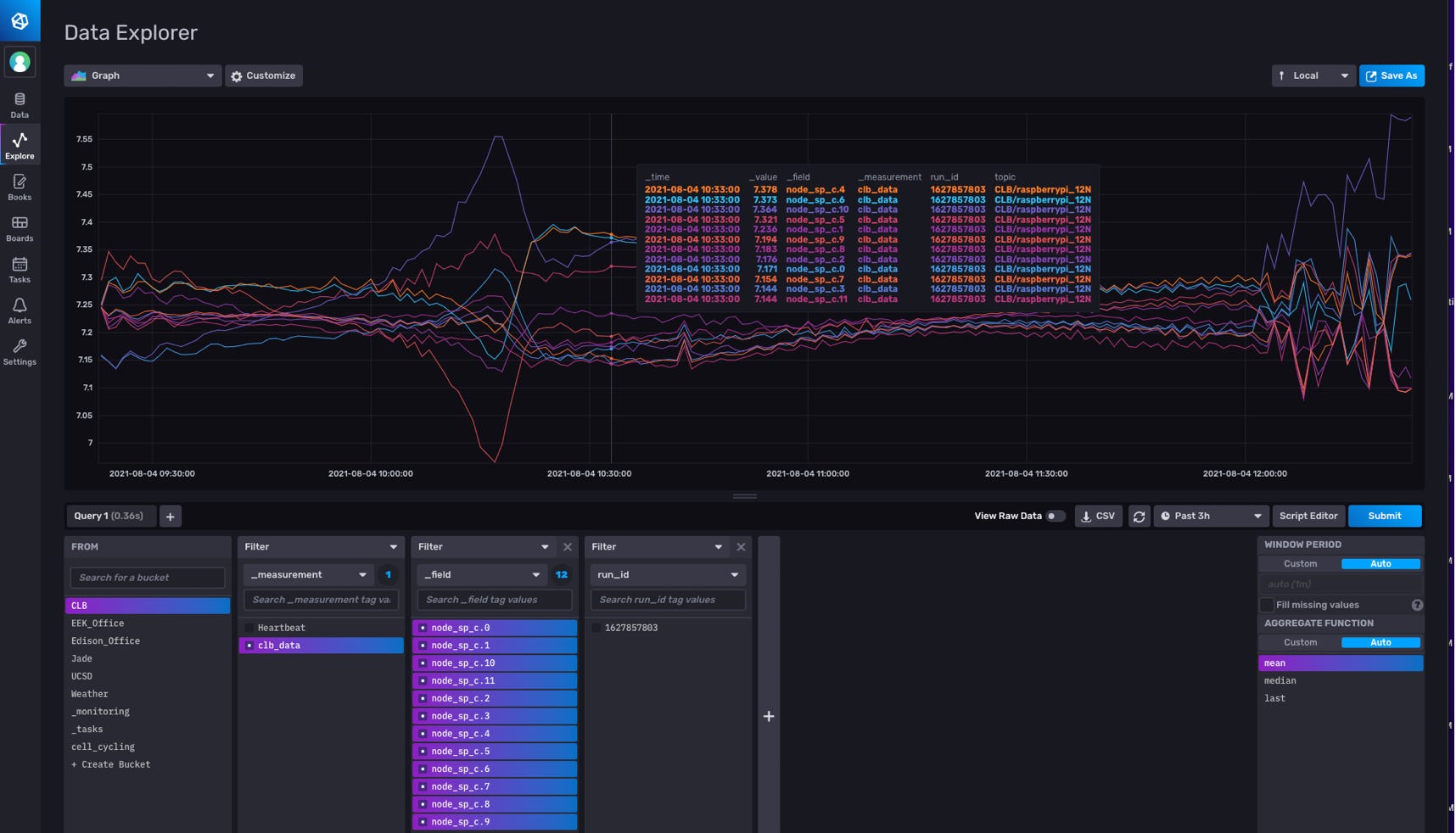

influxdb

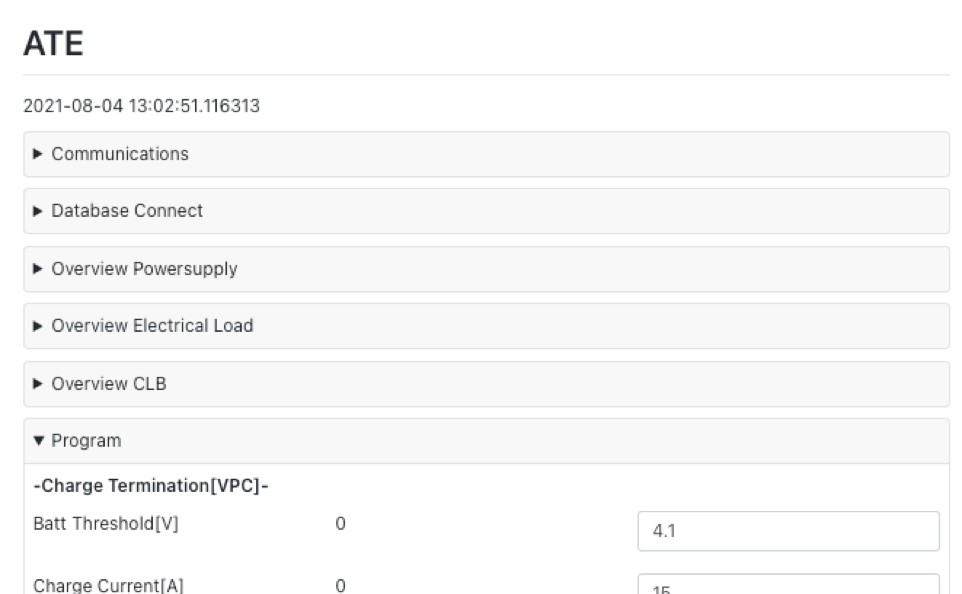

ate

Considerations

To let the cloud system up and running on several conditions we've considered some important points to work the system out

Scaleability

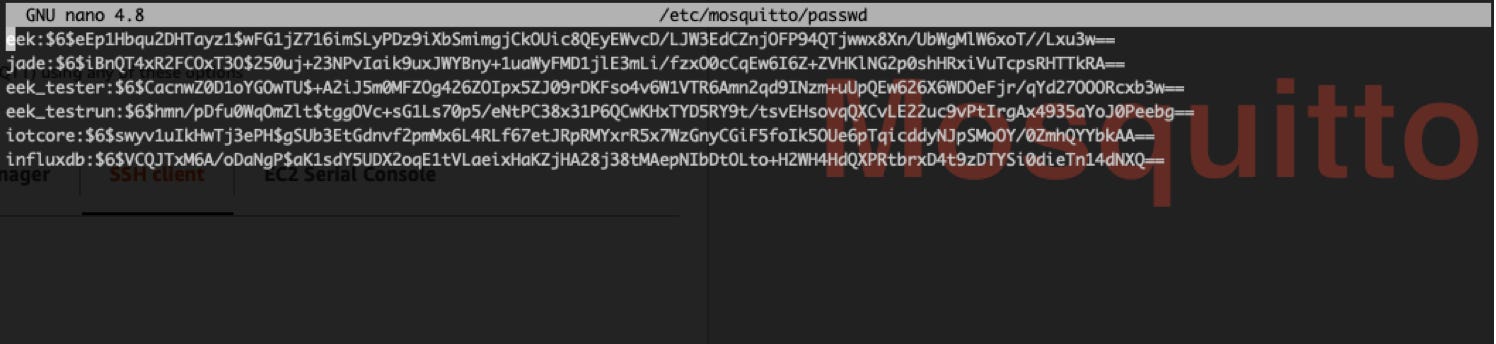

Security
